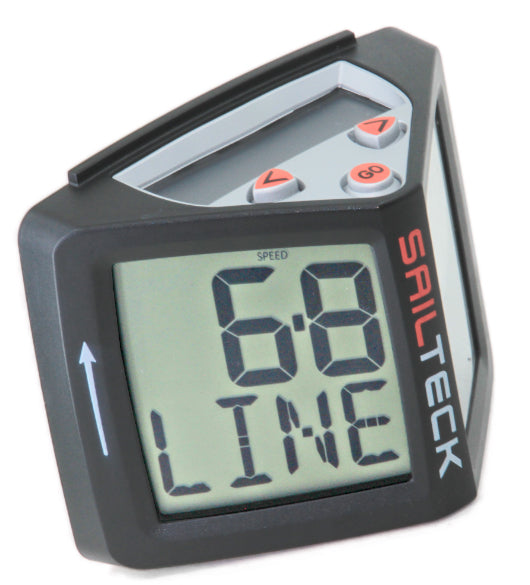

Sailteck GPS Compass

New for 2026 – the Sailteck GPS Compass. From the designer of the original TackTick, the GPS Compass does everything the Sailteck Race Compass does, plus speed over ground, heel, trim, line distance and Bluetooth sensor support – with the highest-precision GPS in any dinghy instrument.

ILCA sailors please note: ILCA Class Rule 22 only permits approved, magnetic-only compasses, so the GPS Compass is not class-legal for ILCA racing unless electronic equipment is specifically permitted by the Sailing Instructions (e.g. some club racing or training regattas – check with your race committee). It is ideal for ILCA training and coaching, and for racing in any class that permits GPS instruments. For an ILCA-approved racing compass, see the Sailteck Race Compass.

Two keymats included:

• Red keys – full functionality including speed and line distance
• Grey keys – restricts the display to Race Compass functions (heading, countdown, time of day) for class rule compliance, while still logging your GPS track and using Sailteck LIVE

Swapping keymats takes seconds and doesn't affect waterproofing, as the keymat sits outside the seal.

What's in the box: GPS Compass, mounting cradle (standard 40 × 80mm hole pattern to suit third-party brackets), red and grey keymats, and corrosion-free soft pack. Deck and mast brackets sold separately.

Features:

• Speed, max speed, heading, heel and trim
• Distance-to-line with bow and beam offset
• Countdown timer and time of day (GPS atomic time)
• Tactical display for wind shift detection, with adjustable step size
• Twin displays with ultra-wide 220° field of view and 30mm super-bold digits
• Optimised for polarised sunglasses
• Solar powered with 200 hours of battery backup, plus wireless charging
• 300 hours of track storage for export and race replay via the Sailteck Web App
• 1° compass accuracy with no recalibration needed

Sailteck LIVE – free software upgrade from November 2026*:

• Race start – with Sailteck units on the committee boat and pin, the start time is pushed to the fleet and OCS boats see an OVER message so they can return. No subscription.
• RTK race start – the built-in RTK-capable receiver can deliver centimetre-level line accuracy (additional committee equipment required).
• Live tracking – built-in 2Nm radio sends your position to the committee boat, no 3G trackers or mobile network needed.
• Track sharing – Sailtecks share positions on the water, so every competitor goes home with the tracks of the whole fleet for race replay.

*Sailteck LIVE is launching initially in the EU and USA.

GPS & sensors:

• Dual-band (L1 & L5) receiver tracking 30+ satellites across multiple constellations
• Large sky-facing patch antenna – accurate to 1m (35cm line error probability), or 5cm with RTK corrections
• 3-axis magnetometer, accelerometer and gyro – 1° heading, heel and trim accuracy
• Data logging up to 10Hz
• Bluetooth sensor support (wind speed, through-water speed, load sensors)

Specifications:

• Dimensions: 120 × 95 × 65mm
• Weight: 270g
• IPX8 waterproof – submersible indefinitely to 20m, and it floats
• Triple shock protection with no exposed glass
• Operating temperature: 0°C to 55°C
